A preset-rhythm drum machine has a short list of patterns and no step sequencer. On paper that is a limitation. In practice, the thing these boxes were loved for is a trick the list never mentions: press two rhythm keys at the same time. Two patterns built for different dances, running on one clock, produce a groove that neither of them contains and that no drummer would sit down and play.

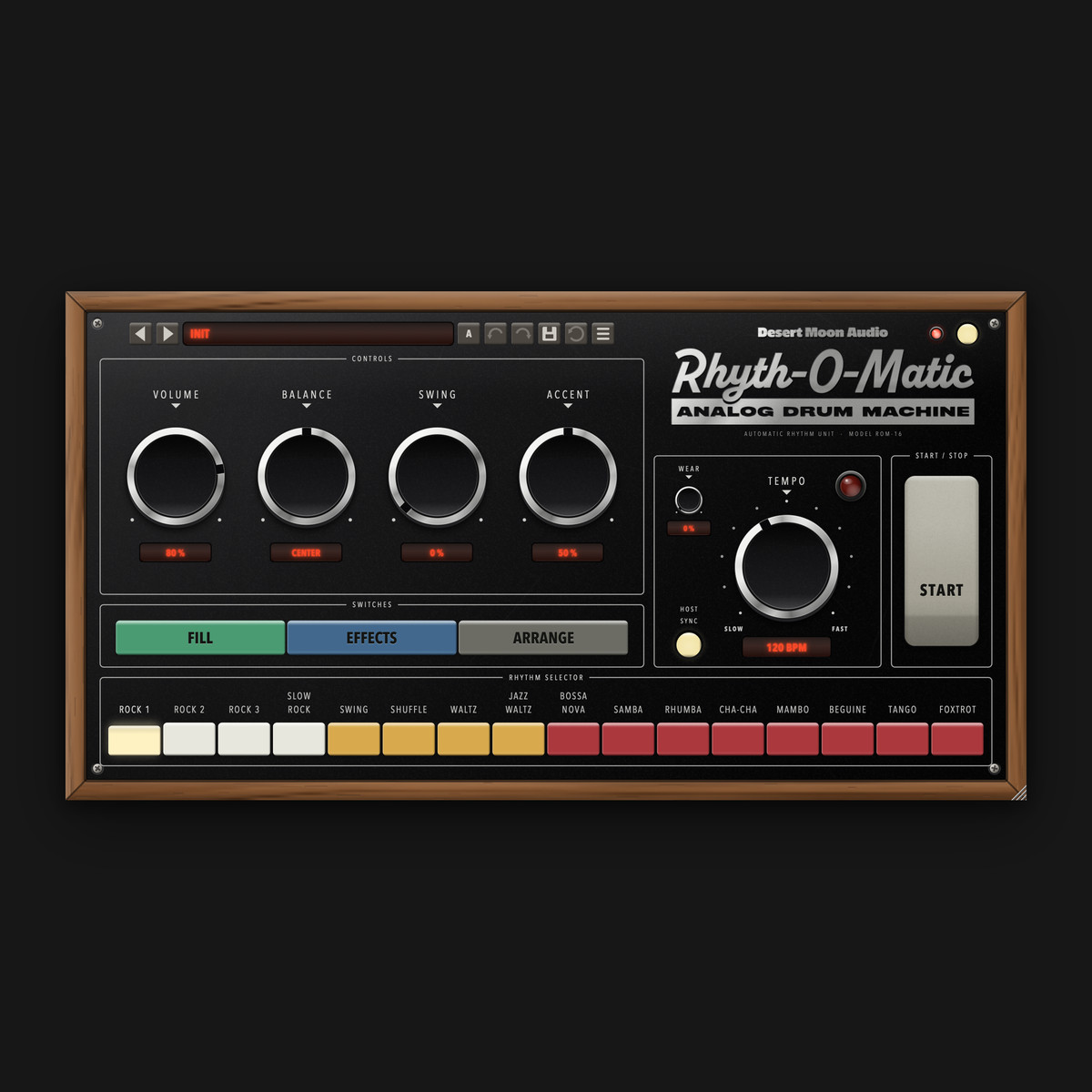

This post is about how that stacking works, and how the feel and fill controls turn a lucky collision into a usable drum part. The control names are those of Rhyth-O-Matic, an analog drum machine with sixteen rhythms on push-keys, any two of which play at once, driving eleven circuit-built drum voices.
Two grids, one bar clock
Each of the sixteen rhythm keys is a pattern on its own grid. Rock, slow rock, swing, shuffle, waltz and jazz waltz are on one side; the Latin and ballroom set, from bossa nova to foxtrot, is on the other. Between them they cover straight, triplet and 3/4 grids. Press a key and it plays. Press a second key and it is added, not swapped. Press a lit key to release it.
What makes the stack interesting is that both patterns run against the same bar clock but keep their own subdivisions. A 16-step rock and a 12-step shuffle agree on where the bar starts, and on a handful of points inside it, and disagree everywhere else. Between the points where they meet, the rock's sixteenths and the shuffle's triplets interlock into a pattern that is neither straight nor swung. A samba under a waltz does the same thing with a 3/4 grid, so the stress lands in places that would be a mistake if one player did it on purpose. The product page's phrase is "lopsided combinations no drummer would play, which is exactly why these boxes were loved."
The two rhythms do not bring their own kits. They share the same eleven voices, bass drum, snare, rim shot, closed and open hats, cymbal, cowbell, claves, maracas and two congas, so what you hear is one kit playing a composite part rather than two machines talking over each other. The hats from one rhythm and the hats from the other are the same hat.
Two starting pairs from the quickstart are Rock 1 with Samba, and Waltz with Jazz Waltz. The first puts a Latin percussion pattern over a backbeat. The second stacks two 3/4 patterns that phrase the bar differently.
With HOST SYNC on, the machine follows the DAW's tempo and bar through loops and tempo changes, so press play in the DAW and both rhythms land on the song's downbeat. Without the DAW, START runs the machine's own clock at the TEMPO dial, 40 to 240 BPM, with a red beat lamp to show where the bar is. MIDI Start and Stop also drive the clock.
Shaping the stack: SWING, ACCENT, BALANCE and WEAR
A raw stack of two patterns is usually too even. Every step of both grids fires at the same weight, so the composite sounds like a list of hits rather than a part. Four front-panel controls fix that.
ACCENT sets how hard the marked hits push. Each rhythm carries its own accented steps, and when two rhythms are stacked, those accents are what tell the ear which of the interlocking hits are the beat and which are the decoration. Turn ACCENT down and the composite flattens into texture. Turn it up and a hierarchy appears, with the accented steps of both patterns stepping forward.
SWING drags the off-beats toward a shuffle. On a straight rhythm stacked with a triplet one, it does more than that, because pushing the straight pattern's off-beats later moves them toward the triplet grid. A little SWING brings a 16-step rock and a 12-step shuffle closer together; none keeps the two grids fighting.
BALANCE trades the drums against the percussion. This matters on a stack because the two rhythms often live in different parts of the kit. When one leans on the bass drum and snare and the other on the congas, claves and maracas, BALANCE effectively sets which rhythm is in the foreground, without touching either pattern.
WEAR makes the machine play like a well-used box, loose and tired rather than tight and clean. The quickstart's advice is that a little SWING and WEAR take the edge off a straight pattern, and ACCENT puts the push back. That order, soften then re-emphasise, is a good one for a stacked pair too.
If a voice is cluttering the composite, the ARRANGE page has four CANCEL VOICE keys to take it out, which is more surgical than lowering the whole percussion side with BALANCE.
Fills, and what two rhythms do together
A stacked pattern repeating for sixty-four bars is still a loop. The fill controls are what make it phrase.
FILL turns the current bar into a fill, with a crash on the next downbeat. AUTO FILL on the ARRANGE page does the same thing on a schedule: every 2, 4, 8 or 16 bars, in one of four fill styles. The quickstart suggests every 8 bars, at which point the machine plays like a drummer counting the song.
The ARRANGE page also sets what two rhythms do together, and this is where the stacking idea has more than one answer. The arranger can play both rhythms at once, which is the layering described above. It can alternate the two, so the part switches between them on the arranger's schedule. Or it can use one rhythm as the fill for the other, so the main pattern runs and the second key only appears in the fill bars. Two keys pressed, then, give three different parts depending on the arrange mode, and switching between them is one setting.
For a sense of the range, the seventeen factory presets include Lounge Bossa, Dusty Break, Backwards Mambo, Dub Beguine, Banana Kong and Haunted Ballroom. Loading one and then pressing a second rhythm key is a quick way to hear what stacking does to a part that has already been shaped.
To try it, start a 14-day free trial of the full version, load Rhyth-O-Matic on an instrument track with HOST SYNC on, and press Rock 1 and Samba together. Add a little SWING and WEAR, bring ACCENT up until the backbeat reappears, set AUTO FILL to every 8 bars, then step through the arrange modes and listen to the same two keys become three parts.
