A VU meter is not a level detector with an attack and a release. It is a moving-coil movement driven by a rectifier, and everything characteristic about it, the lag, the slight overshoot, the way it ignores short peaks, falls out of that mechanism. If you have only ever used a peak meter, a VU looks lazy and imprecise. It is neither. It measures a different thing, and that thing is closer to how loud something sounds.
What the needle is actually showing
The rectifier turns the audio into a wobbling DC voltage; the coil sits in a magnetic field and swings the needle in proportion to it. The coil has mass, so it cannot follow a transient. It takes about 300 milliseconds to reach its reading, and because it is a spring-and-mass system it overshoots a touch before settling. A snare hit that would peg a peak meter barely moves a VU, while a sustained vocal or bass line moves it a lot.
That is the point. Peak meters tell you how close you are to clipping. A VU tells you how much average energy is in the signal, which is what your ears respond to as loudness. When two tracks read the same on a VU they sound roughly the same volume; when they read the same on a peak meter, they can be miles apart.

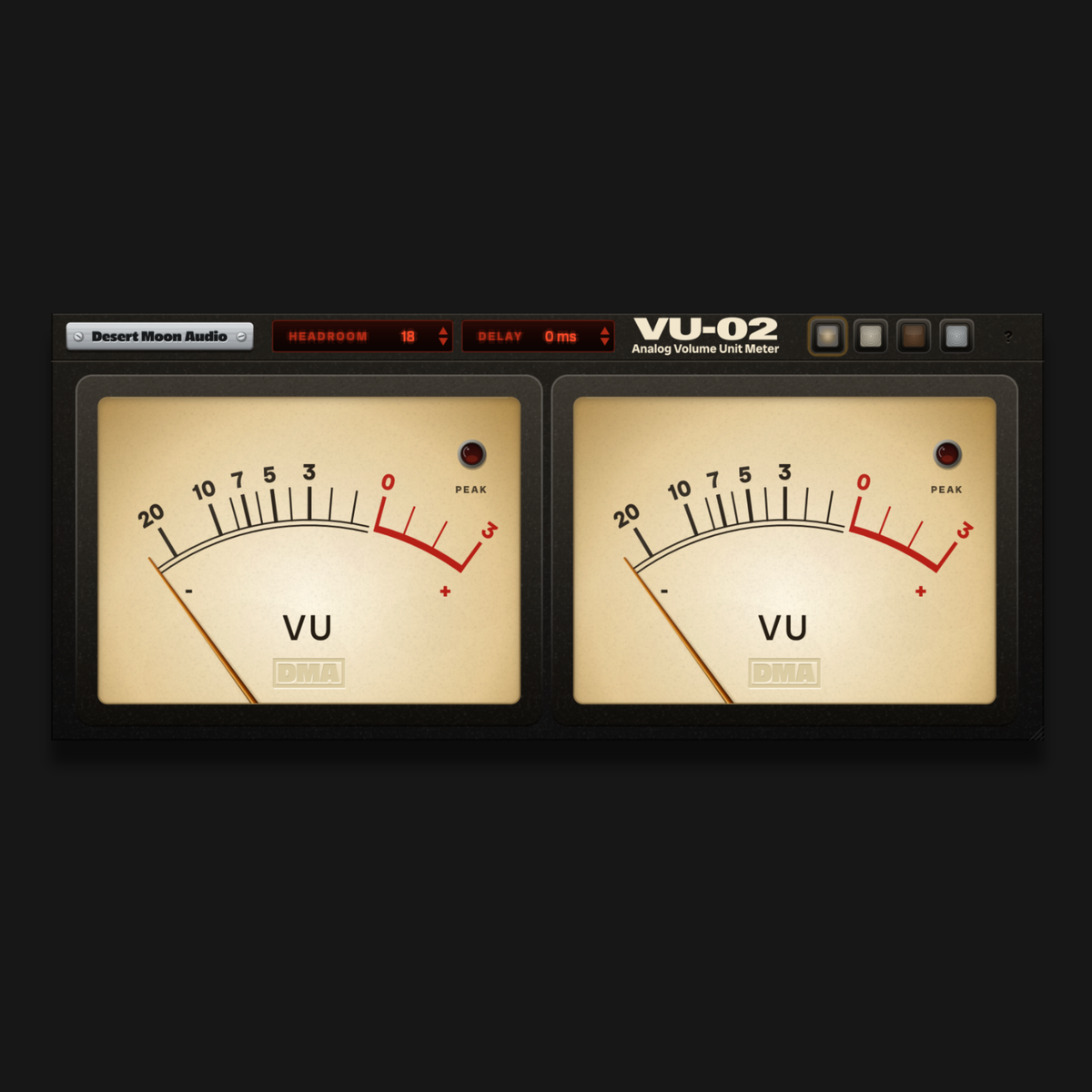

VU-02 models the movement rather than approximating its symptoms, so the ballistics are the real ones. It is metering only: the audio leaves bit for bit as it arrived and the plugin reports no latency, so it can go anywhere in a chain without consequence.
Where 0 VU should sit
On hardware, 0 VU corresponds to a fixed voltage. In a DAW there is no voltage, so a VU plugin needs to be told where 0 VU sits below digital full scale. That is the Headroom control on VU-02, adjustable from 4 to 26 dB with a default of 18. At 18, a steady tone at −18 dBFS reads 0 VU.
Eighteen dB of headroom is a good default because it matches how most analog-modelled plugins expect to be driven: their sweet spot is around the level the original hardware saw at 0 VU. If you mix so that busses hover around 0 VU with this setting, you have around 18 dB of room for peaks above the average level, which is what most music needs. If your peaks are still clipping with the needle around zero, the material has a very high peak-to-average ratio, and the fix is a limiter or a compressor upstream, not a different headroom number.
The clip lamp on VU-02 lights at −0.009 dBFS and clears when clicked. It is there for the peaks the needle cannot show you.
Reading a mix with it
Put one on the mix bus and one on anything you are balancing. Then:
- Bass and kick. These carry most of the energy, so they move the needle most. If the mix bus needle is pinned but the mix does not sound loud, the low end is taking the headroom.
- Vocals. A lead vocal that sits well usually shows a steady swing around 0 with the occasional dip, not a needle glued to the pin. Big excursions mean the compressor upstream is not doing enough.
- Comparing sources. Solo two instruments in turn and match their VU readings before you match by ear. It is a faster starting point than a peak meter gives you.
The needle's lag is also a rhythm tool. On a groove-based track, the needle should bounce with the beat; if it just sits there, the arrangement has no dynamic shape, and no amount of EQ will fix that.
Lining up meters across busses
Plugins add latency, and busses with different chains end up a few milliseconds apart. If you have a VU on the drum bus and another on the mix bus, the needles swing out of step even though the audio is aligned by the DAW's compensation. VU-02's Delay control holds the display back by 0 to 1000 ms without delaying the audio, so you can set each meter to swing in time with the others. It sounds like a cosmetic feature until you have four of them on a console-style layout and the needles all move together.
VU-02 comes in four finishes (black, cream, walnut and silver) and resizes from 0.7× to 2.5× by dragging its corner, which matters when you want a large one on a second screen. It is the least expensive plugin in the line, and there is a 14-day free trial if you want to see whether a needle changes how you balance.
